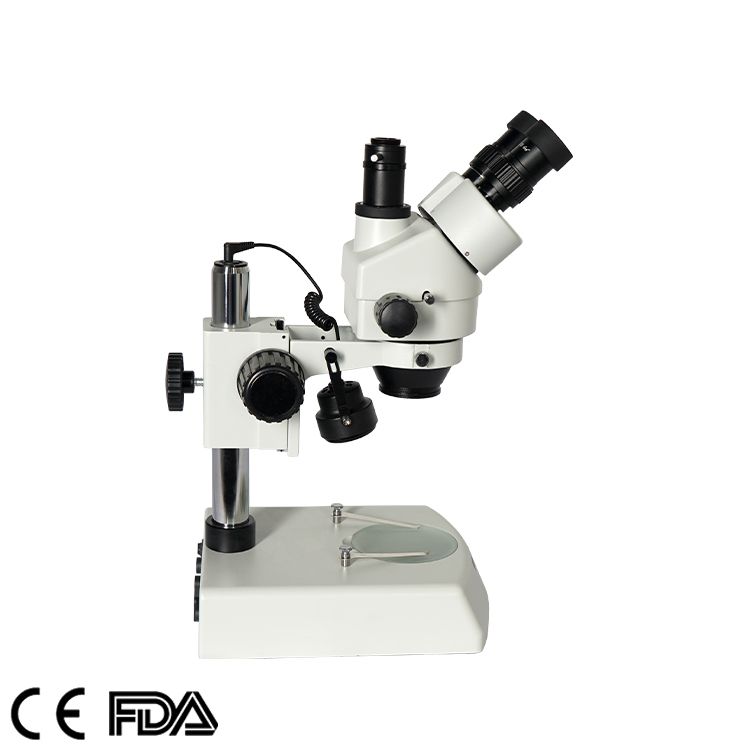

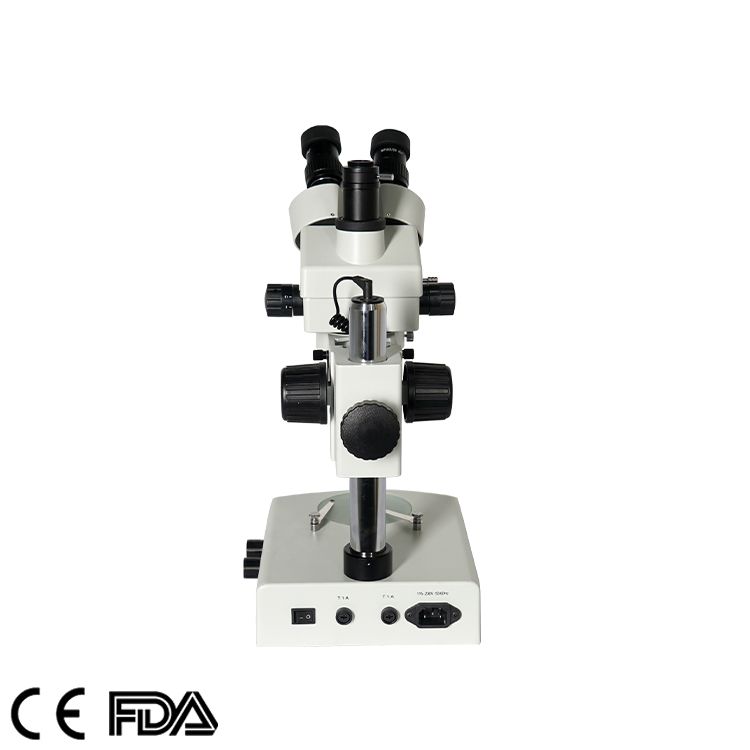

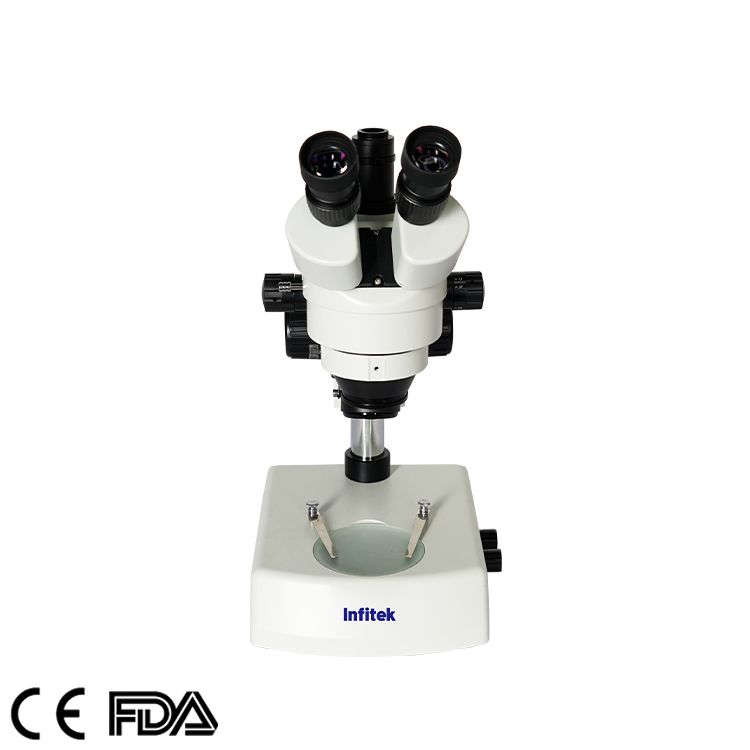

Stereo Microscope (Dissecting Microscope), MSC-ST45T

Specifications

Model

MSC-ST45T

Magnification

Zoom objective 7X-45X

Eyepiece

WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses

*Optional Eyepiece15X/15mm，20X/10mm，25X/9mm，30X/8mm

Main Body

Trinocular head，45° inclined, 360° rotatable, can be locked in any position desired.Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters

Objective

0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1

*Aux Lens: 0.5X, 2X

Focusing Mount

Focusing mount with vertical working distance 50mm

Stand

Vertical Post：240mm ；Diameter：φ32mm；With φ95mm B/W Plastic & Perspex Plate and Paired Clips；Base Size：200x255x60mm

Illumination

Transmitted and reflected 12v/15w halogen； *LED illumination

C-Mount

SZM 1X C-Mount；*SZM 0.5X C-Mount；*SZM 0.3X C-Mount

Information：3.5X-270X with optional eyepieces and objectives

*Optional configuration

Package

Carton

Package Size L*W*H (mm)

510*280*380

Net/ Gross Weight (kg)

6/ 7
