Description

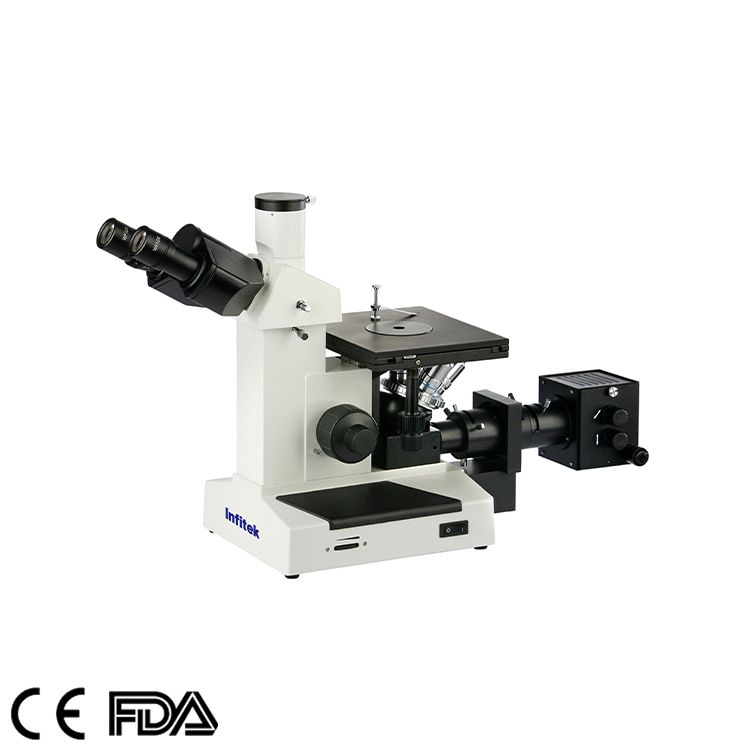

Infitek has newly developed and manufactured a new generation of advanced binocular inverted metallurgical microscope with integrated bright field, dark field, polarized light and other observation methods.
Suitable for microscopic observation of opaque objects or transparent objects. It is suitable for identifying and analyzing the internal structure of materials such as metals, minerals, precision engineering, electronics, etc. It is an ideal industrial optical microscope for metallographic research in metal physics.
Specifications

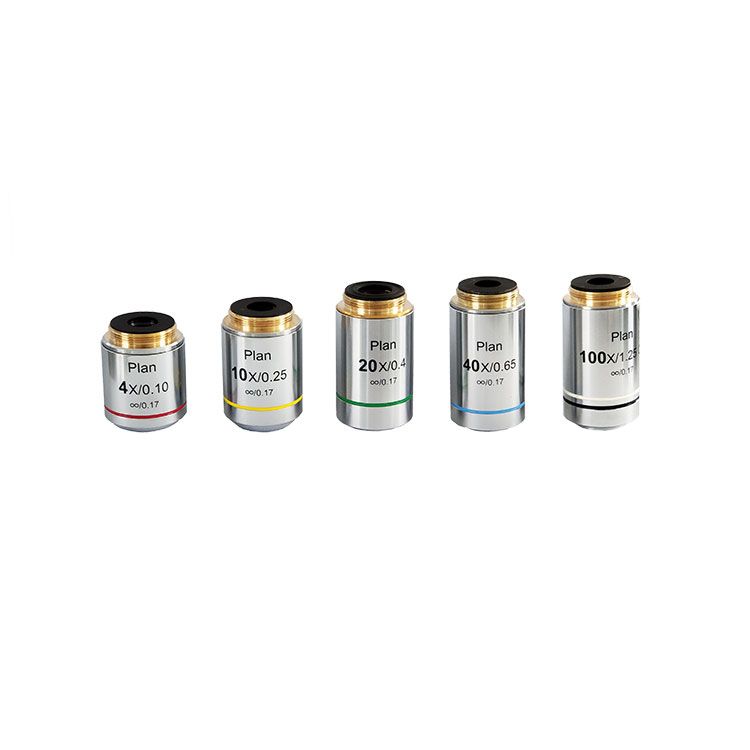

Model MSC-M4XC Extra Wide Field Eyepiece WF10X/18, Eyepiece with Scale of Crosshair WD Plan Achromatic Objective PL L10X/0.25 WD 8.9mm PL L20X/0.40 WD 3.75mm PL L40X/0.60 WD 2.69mm SP L100X/0.90 WD 0.44mm Optional Objective PL L50X/0.70 WD 2.02mm PL L60X/0.75 WD 1.34mm PL L80X/0.80 WD 0.96mm PL L100X/0.85 WD 0.4mm Viewing Head Siedentopf trinocular viewing head, Inclined at 30″, Interpupillary 55mm-75mm illumination system 6V/20W Halogen light, brightness adjustable Polarizer and analyzer Green, Blue, Yellow Filter Focusing Coaxial coarse and fine adjustment, fine division 2um Nosepiece Backward quadruple nosepiece Optional: Backward quintuple nosepiece Stage Double layer mechanical stage 180X150mm, Moving range 15mmX15mm Accessories Photo/Nideo attachment; Micrometer scale 0.01mm -
