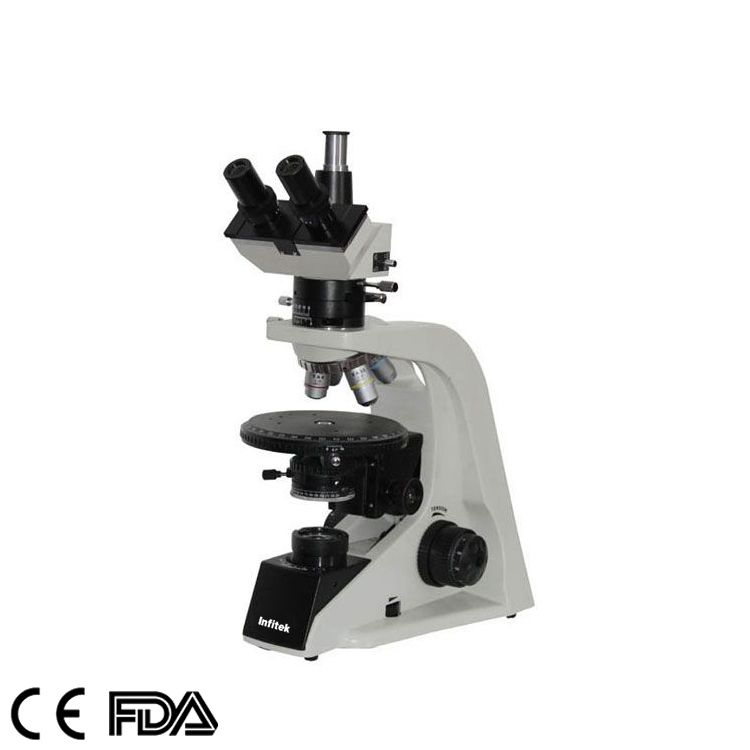

Polarizing/ Petrographic Microscope, MSC-P200T
-
商品資訊
Description
Specifications
|
Model |
MSC-P200T |
|
Viewing Head |
Sliding trinocular head inclined at 30°，Interpupilary 55-75mm |
|
Eyepiece |
WF10X/18， WF10X/18mm with Scale of Crosshair 0.1mm |
|
Objective |
Strain Free Achromatic Objective：4X、10X、40X、63X |
|
Nosepiece |
Quadruple nosepiece |
|
Analyzer |
Rotatable analyzer with gradation 0°-90°； Sliding in/out of the optical path |
|
Bertrand Lens |
Bertrand lens， Sliding in/out of the optical path |
|
Optical Compensator |
λSlip(Firstclass red) 1/4λSlip |
|
Revolving Round Stage |
Diameterφ160mm,360°Rotatable and graduate in 1°Increments， Minimum resolution 6’when using venire scale， Center adjustable |
|
Condenser |
Abbe Condenser NA 1.25 with Iris diaphragm&filter |
|
Focusing |
Coaxial coarse&fine adjustment， range 35mm， fine division 0.002mm |
|
Polarizer |
360°Rotatable located |
|
illumination |
6V/20W Halogen lamp， Brightness adjustable |
|
Packaging Size(mm) |
440*300*580 |
|
Net / Gross Weight(kg) |
10/ 11.5 |
-
