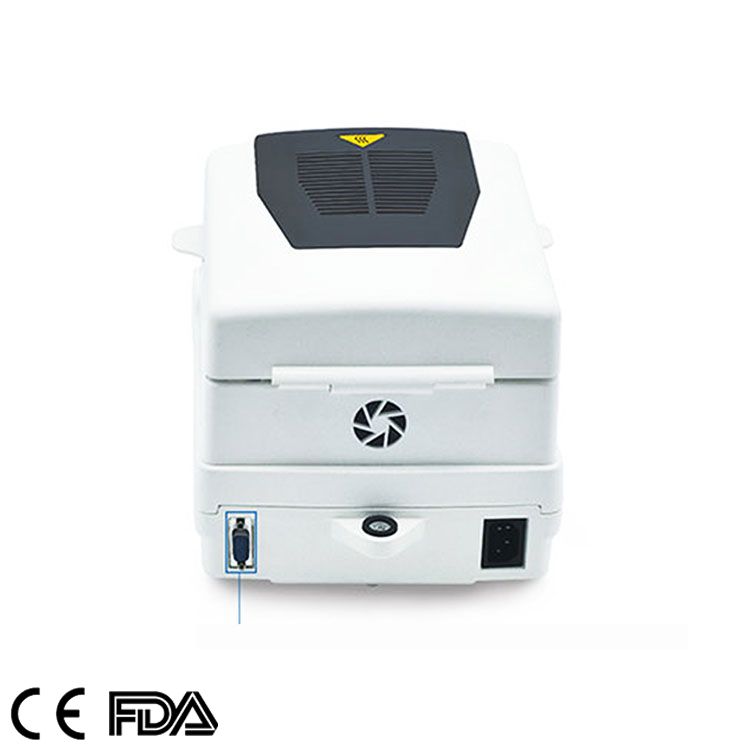

Halogen Moisture Analyzer, MCA Series

  • Halogen Moisture Analyzer, MCA Series
  • Halogen Moisture Analyzer, MCA Series
商品圖像
  • 商品資訊

    Description



    DESCRIPTION



    1.Halogen lamp/HBM sensor
    2.Aluminum shell/Stainless steel chamber
    3.LCD(White back light with black font)
    4.Temperature/Time set
    5.The percentage of moisture content/dry residual
    6.Store historical set
    7.Option:Aluminum box/Printer/Grinder



    SPECIFICATIONS


    Model MCA110-10 MCA110-5 MCA110-2 MCA110-1 MCA110-1A
    Capacity 110g
    Readability 0.01g 0.005g 0.002g 0.001g
    Operating Temp 5℃-35℃
    Display Backlit LCD High Definition Backlit LCD
    Calibration External Calibration
    Interface RS232(Standard)/USB(Option)
    Pan Size Ø90mm
    Packing Size 500*350*370mm
    Gross Weight 7.5kg
    Heating Source Halogen Lamp-1 Halogen Lamp-2
    Temp. Sensor PT100
    Temp. Range 40℃-199℃
    Temp. Step 1℃
    Moisture Range 0.00%-100.00%
    Moisture Readability 0.20% 0.10% 0.04% 0.01%
    Dry Range 100.00%-0.00%
    Dry Readability 0.20% 0.10% 0.04% 0.01%
    Temp Setting 40℃-199℃ By 1℃ Step
    Time Setting 1-99min By 10s
    Number of Storage 15
    Heater 220V ±15% 50Hz/110V±15% 60Hz/400W
    Balance Input: 220V 50Hz/110V 60HZ  Output: 9V
    Chamber Height 22mm
