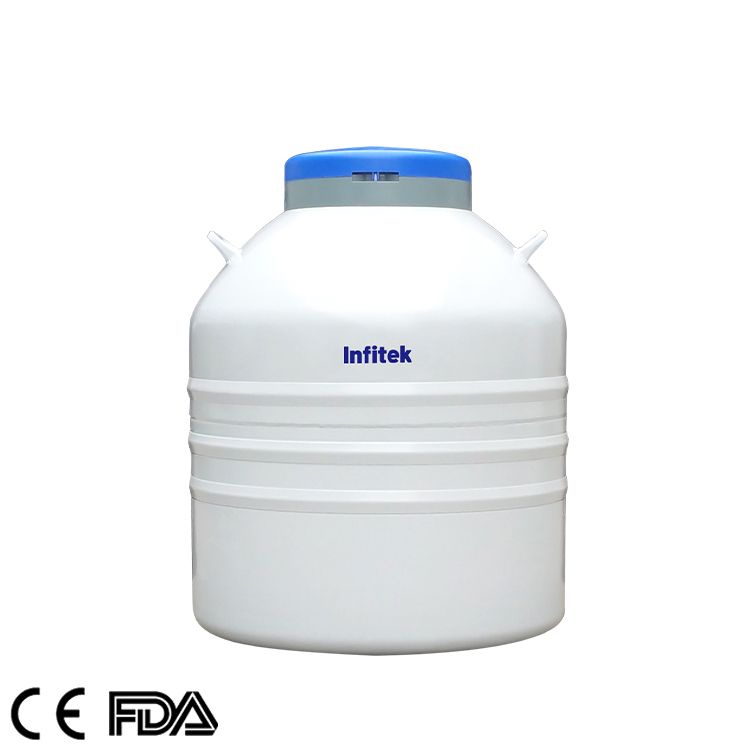

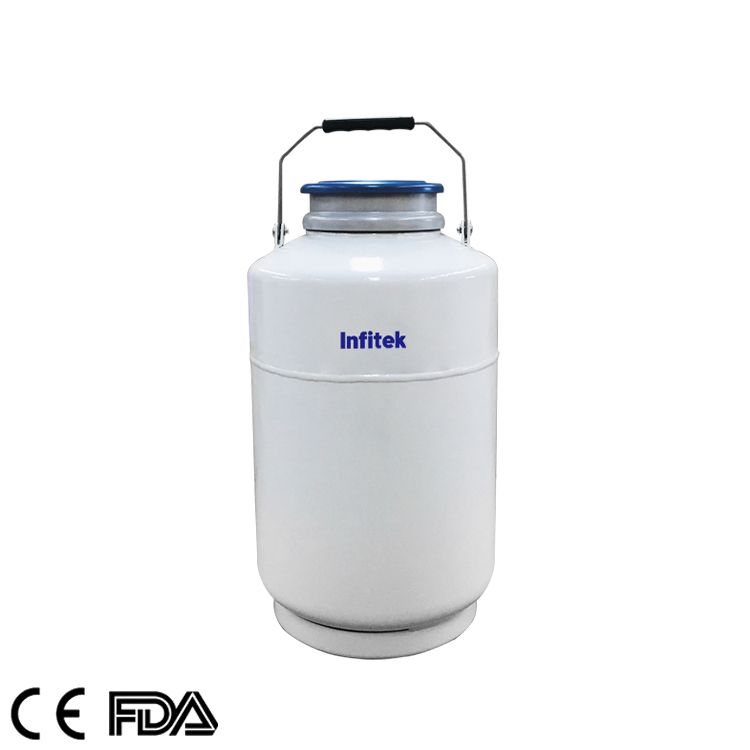

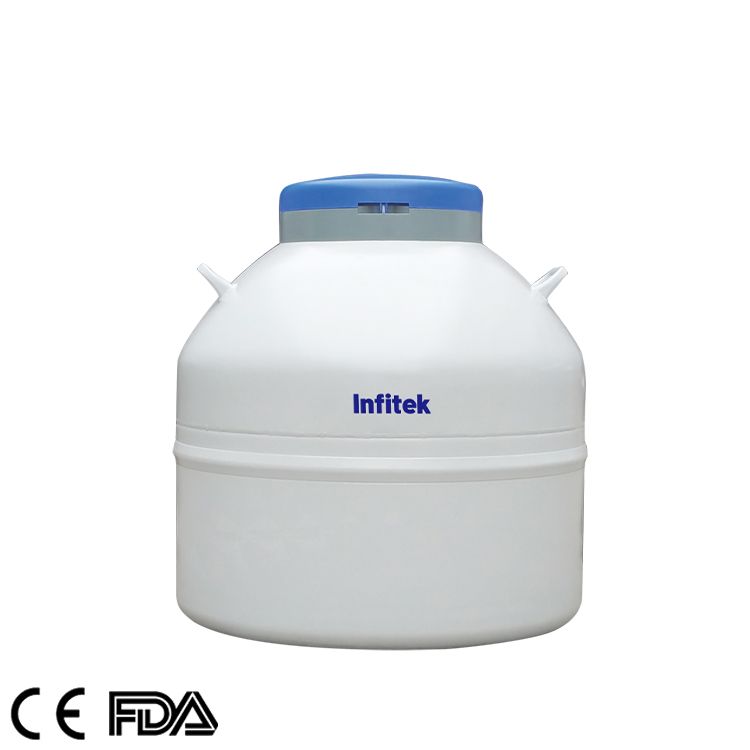

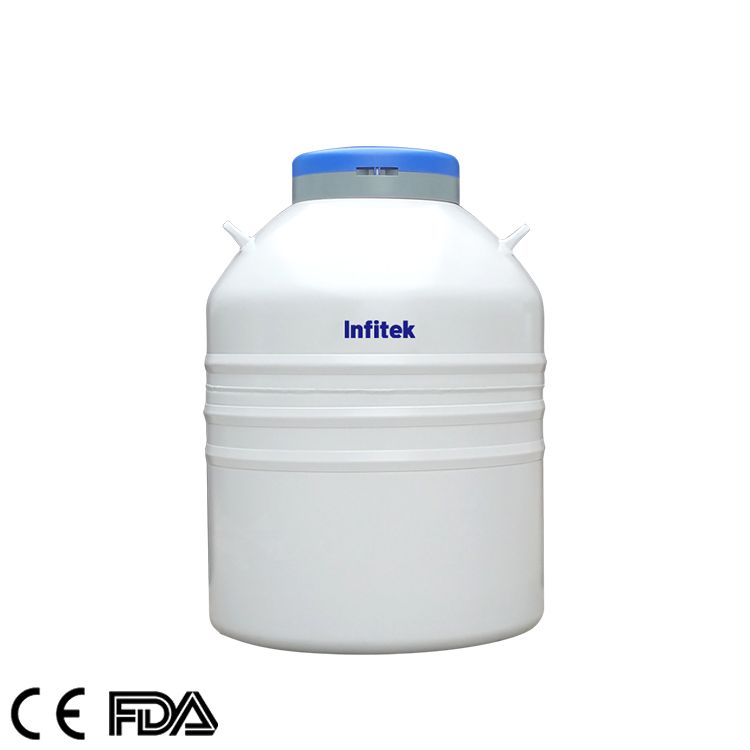

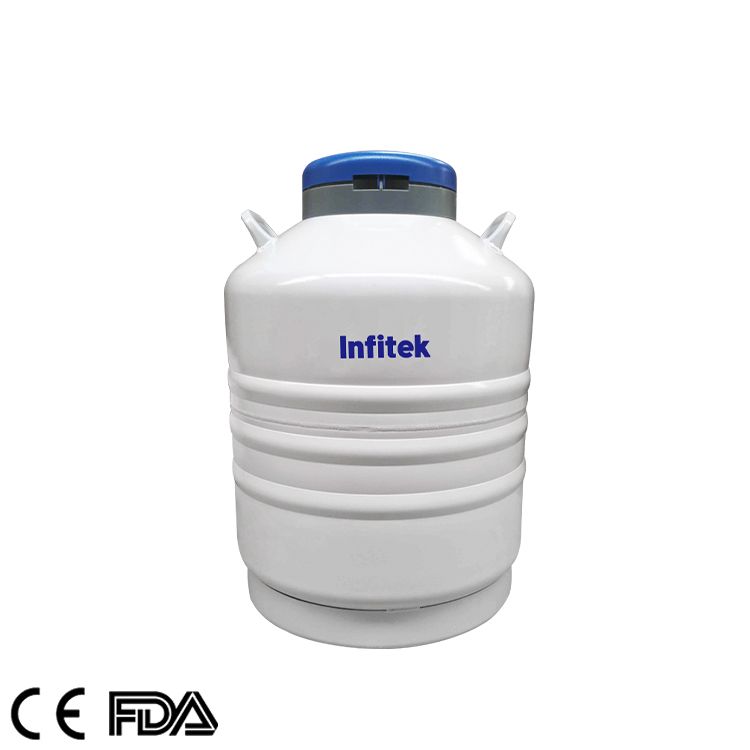

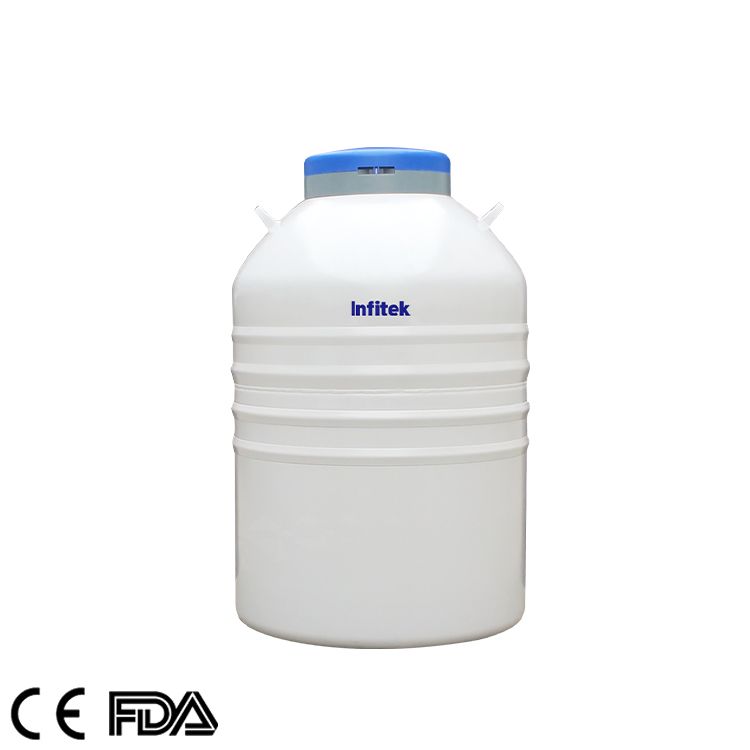

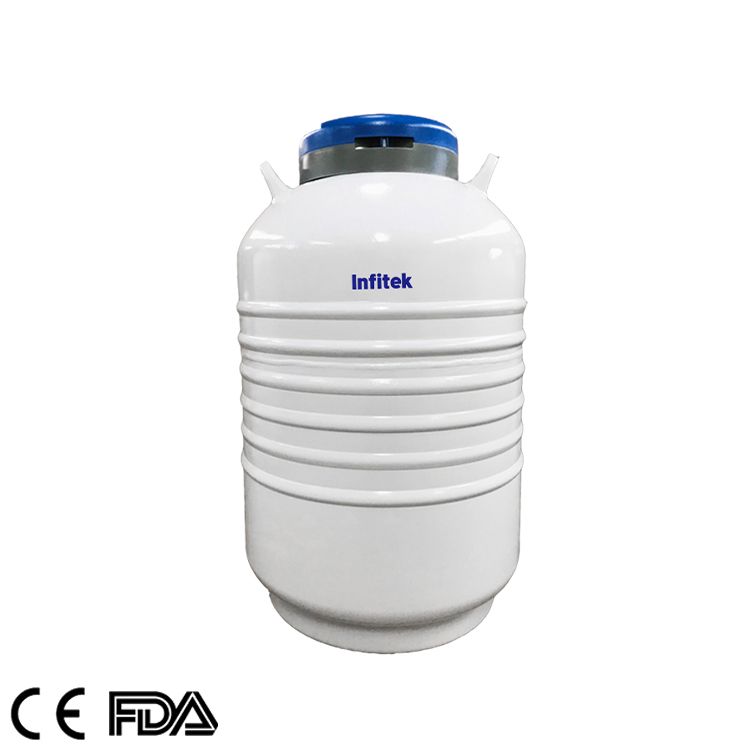

Laboratory Liquid Nitrogen Tank, LNC-L Series
商品圖像
- 微生物專用設備
- 細胞專用設備
- 基礎理化設備
- 溶液處理移液設備
- 蛋白質專用設備
- Cellpro
- 試劑類
- 培養基類
- 實驗室耗材類
- 儀器維修&校正服務
- 防疫專區
- infitek系列
- pakgent系列
- 塑膠耗材類別
- 冷藏冰箱
-
商品資訊
Description
DESCRIPTION
Product Overview
Laboratory series combines the advantages of low liquid nitrogen consumption and medium storage capacity. It has the advantages of light weight, less space occupation and high efficiency storage of large sample freezing. It can meet the different needs of laboratory professionals. All models include freeze shelves and PC freeze boxes to ensure easy storage of samples.
Product Features
- Durable aluminum structure;

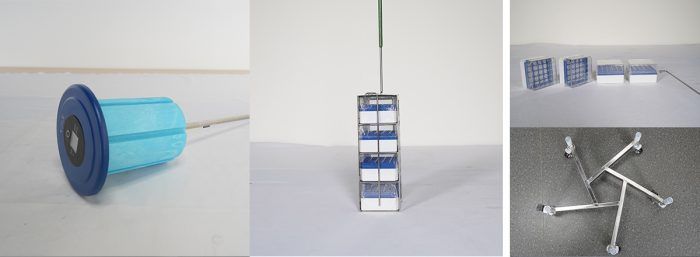

- Matching freezing shelves and freezing boxes:
- Large capacity and low liquid nitrogen consumption;
- Optional safety lock cover structure to prevent othersfrom unlocking without authorization:
- Optional liquid level monitoring system;
- Optional transport vehicle;
Easy to Find Your Sample
- Designed for Jong-term storage, it is easy to take and place samples;
- The marked freezing shelves and freezing boxes are convenient for quickly andeffectively finding the required samples;
- It can be equipped with liquid level monitor to monitor the liquid level height in realtime and send out low level sound and light alarm.
Optional safety lock cover structure

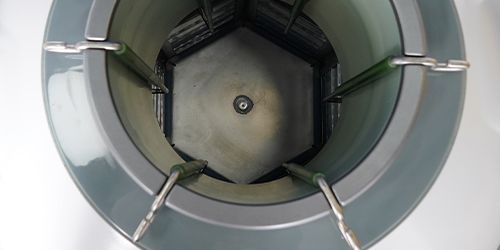

Durable aluminum structure SPECIFICATIONS
Model LNC-L10-125 LNC-L30-125 LNC-L35-125 LNC-L47-127 LNC-L50-125 LN2 Capacity (L) 10 31.5 35.5 47 50 Weight Empty (kg) 6.3 13 14.6 18.2 17.3 Neck Opening (mm) 125 125 125 127 125 Outer Diameter (mm) 300 462 462 508 462 Overall Height (mm) 554 704 748 718 818 Static Evaporation Rate (L/day) 0.42 0.35 0.36 0.36 0.45 Static Holding Time (day) 24 90 97 130 110 Package Dimension (W*D*H)(mm) 490*490*990 G.W.(kg) 27 Maximum Storage Capacity Racks 2mL Freezing Tube Number of Racks (ea) 1 6/7 6/7 6/7 6/7 Rack Dimension (mm) 82×84 82×84 82×84 105×100 82×84 Vial Boxes Dimension (mm) 76×76 76×76 76×76 98 76×76 Boxes per Rack (ea) 4 4 5 5 6 1.2; 1.8&2ml Vials (Internally Threaded) 100 600/700 750/875 1100/1295 900/1050 Racks 5mL Freezing Tube Number of Racks (ea) — — — — — Rack Dimension (mm) — — — — — Vial Boxes Dimension (mm) — — — — — Boxes per Rack (ea) — — — — — 1.2; 1.8&2ml Vials (Internally Threaded) — — — — — Optional Accessories Lockable Lid Optional Optional Optional Optional Optional PU Bag（Protective jacket） — Optional Optional — Optional Smart Cap Optional Optional Optional Optional Optional Roller Base — Optional Optional Optional Optional Model LNC-L65-216 LNC-L95-216 LNC-L115-216 LNC-L145-216 LNC-L175-216 LN2 Capacity (L) 65 95 115 145 175 Weight Empty (kg) 38.3 41.3 42.3 48.9 53.8 Neck Opening (mm) 216 216 216 216 216 Outer Diameter (mm) 681 681 681 681 681 Overall Height (mm) 712 774 846 946 1060 Static Evaporation Rate (L/day) 0.78 0.97 0.94 0.96 0.95 Static Holding Time (day) 83 98 122 151 184 Maximum Storage Capacity Racks 2mL Freezing Tube Number of Racks (ea) 6/7 6/7 6/7 6/7 6/7 Rack Dimension (mm) 142×144 142×144 142×144 142×144 142×144 Vial Boxes Dimension (mm) 134×134 134×134 134×134 134×134 134×134 Boxes per Rack (ea) 4 5 6 8 10 1.2; 1.8&2ml Vials (Internally Threaded) 2400/2800 3000/3500 3600/4200 4800/5600 6000/7000 Racks 5mL Freezing Tube Number of Racks (ea) 6/7 6/7 6/7 6/7 6/7 Rack Dimension (mm) 142×144 142×144 142×144 142×144 142×144 Vial Boxes Dimension (mm) 134×134 134×134 134×134 134×134 134×134 Boxes per Rack (ea) 2 2 3 4 5 1.2; 1.8&2ml Vials (Internally Threaded) 972/1134 972/1134 1458/1701 1944/2268 2430/2835 Optional Accessories Lockable Lid Optional Optional Optional Optional Optional PU Bag（Protective jacket） — — — — — Smart Cap Optional Optional Optional Optional Optional Roller Base Optional Optional Optional Optional Optional ACCESSORIES

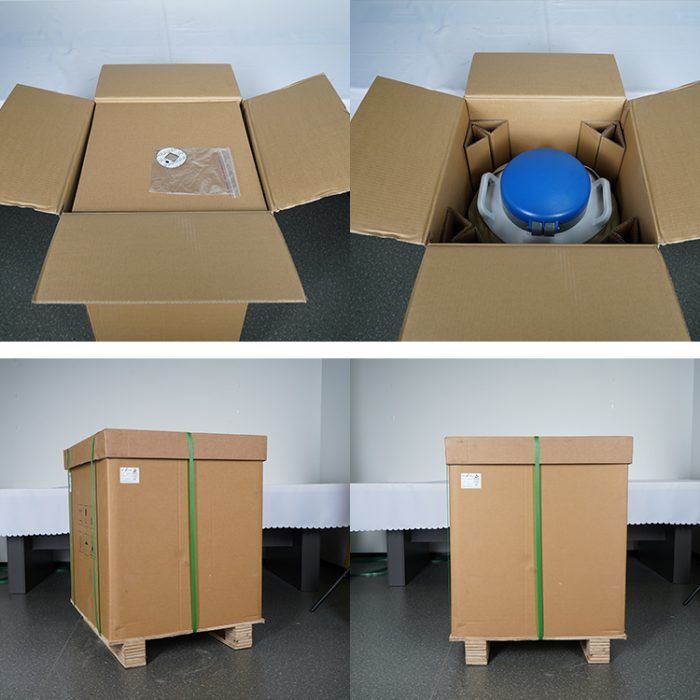

PACKING
-
