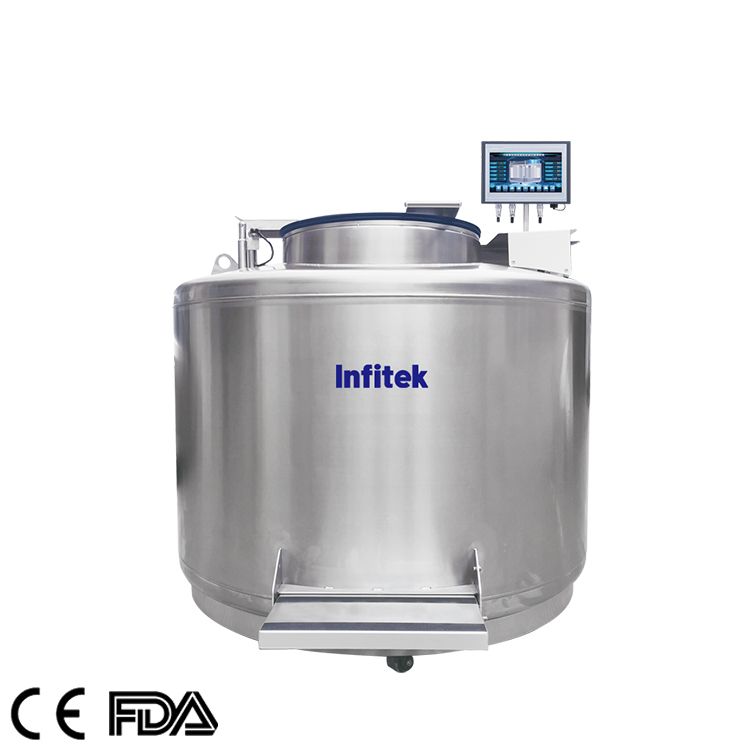

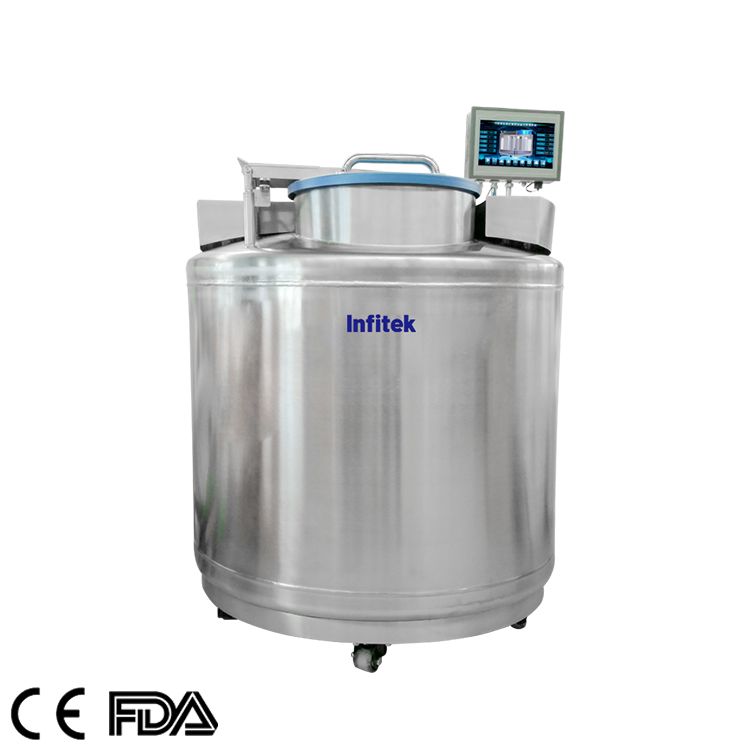

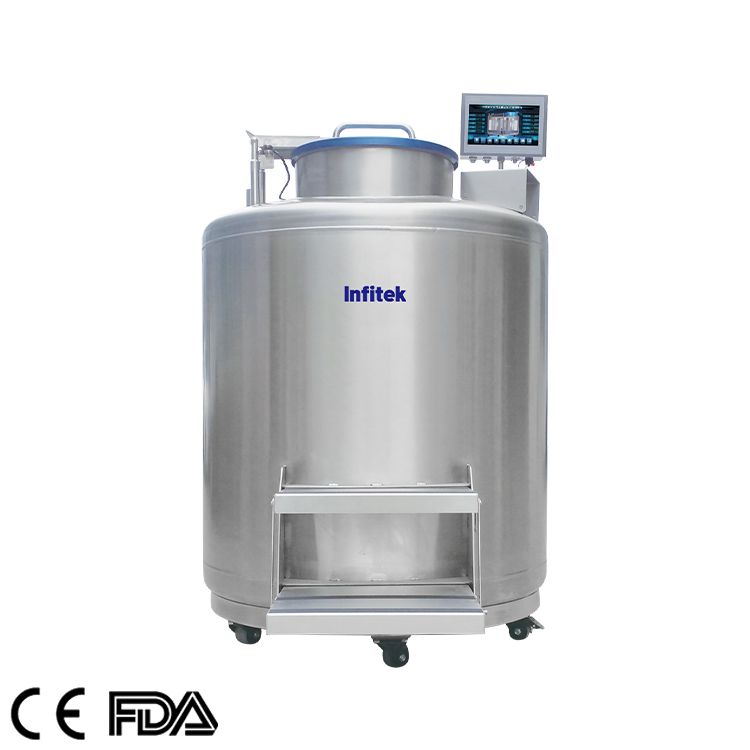

Liquid Nitrogen Container, LNC-Y Cryogenic Series
商品圖像
- 微生物專用設備
- 細胞專用設備
- 基礎理化設備
- 溶液處理移液設備
- 蛋白質專用設備
- 生物藥品類產品
- 試劑類
- 培養基類
- 實驗室耗材類
- 儀器維修&校正服務
- 防疫專區
- infitek系列
- pakgent系列
- 塑膠耗材類別
- 冷藏冰箱
-
商品資訊
Description
Product Overview
Cryobiobank series provide users with automatic, secure and reliable cryogenic liquid nitrogen freezing systems. Tanks are made of high quality stainless steel, equipped with casters and brakes, and wide neck opening for easy to pick and place specimen. Specimen could be stored in liquid or vapor, and control system provides high convenience and security. To achieve the more economical operation, our design ensures the lowest consumption of liquid nitrogen and the maximum storage capacity of the specimen. The whole tank uses advanced evacuation technology, adiabatic technology and high vacuum retention technology to ensure the safe storage of specimen, good uniform temperature and the lower liquid nitrogen consumption. When specimen in vapor storage, the entire storage area temperature differences do not exceed 10 ‘C, and the top of the frozen rack lowest temperature can reach -190’C. Cryobiobank series provides you with the better storage experience: fast specimen access, reliable protection, convenient liquid nitrogen autofill and flexible storage capacity.
Product Features
- Compatible with vapor and liquid storage modes;
- Various capacity optional to meet your storage requirements;
- More specimen capacity in a limited space to reduce the storage costs;
- Excellent temperature uniformity and stability;
- Excellent temperature stability after opening lid;
- Advanced temperature, level monitoring and alarm system;
- Automatic filling liquid nitrogen system, safe and efficient;
- Controlling system can chronically store operating data;
- One button to demist, easy to search, pick and place specimen;
- User-friendly design, comfortable operation;
- Lockable lid, fully guarantee the safety of the specimen;
- Equipped with folding steps and workbench;
Product Advantages
-
Big storage capacity
Compared with similar products, our products need less space and could store more samples; save space and also reduce the cost. -
Excellent temperature uniformity
Vacuum insulated stainless steel structure, high vacuum coverage to ensure excellent insulation properties. -
Stable temperature while lid is open
Innovative lid and excellent small neck openings design can greatly reduce the liquid nitrogen evaporation rate. Even keep the lid open for a long time, the temperature inside the tank can still be very stable, temperature could be not higher than -150℃ within 48 hours. -
Advanced temperature monitoring system
Microprocessor-based control system and the vertical double platinum resistance temperature probe can display real time temperature, accuracy of ±1℃. Thecan set their own alarm temperature value, with alarm mute option. -
Automatic filling liquid nitrogen and liquid level monitoring system
Based on the differential pressure sensor, level monitoring system could display real-time liquid level, to ensure that the liquid nitrogen automatic filling process safe and reliable. 10-inch LCD touch screen display: temperature of the top, bottom temperature, liquid level, and operating status etc. -
Hot gas bypass
The hot gas bypass can remove nitrogen which is at indoor temperature before the liquid nitrogen is filled, to ensure that only liquid nitrogen is filled into the tank and avoid temperature fluctuations in the liquid nitrogen tank during the filling process. It would make sure the safety of the sample and also reduce the additional liquid nitrogen consumption. -
Humanization design
Stainless steel auxiliary table, can be used for temporary placement for the racks to speed up the sample picking and placing; folding steps reduce the height of the operation platform; spare opening on the internal tray for easy to find inadvertently dropped samples.
Specifications
Model LNC-Y350 LNC-Y450 LNC-Y550 LNC-Y750 LNC-Y850 LN2 Capacity Under Platform Vapor Storage (L) 55 55 80 80 135 LN2 Capacity (L) 350 460 587 783 890 Neck Opening (mm) 326 326 445 445 465 Usable Internal Height (mm) 600 828 600 828 773 Outer Diameter (mm) 875 875 1104 1104 1190 Over Height(mm) Containing Instrument Height 1326 1558 1321 1591 1559 Weight Empty (kg) 219 277 328 372 441 Operation Height (mm) 1263 1212 1266 1216 980 Weight Liquid Full (kg) 502 649 802 1005 1160 Door Width Requirement (≥mm) 895 895 1124 1124 1210 Maximum Storage Capacity of 2ml Internal Rotary Freeze Storage Tube 1.2,1.8&2 ml Vials (Internally Threaded) (ea) 13000 21000 27000 37800 42900 Number of Racks with 25 (5×5) Cell Boxes (ea) 4 8 12 12 4 Number of Racks with 100 (10×10) Cell Boxes (ea) 12 12 24 24 32 Number of 25 (5×5) Cell Boxes (ea) 40 120 120 168 52 Number of 100 (10×10) Cell Boxes (ea) 120 180 240 336 416 Number of Stages per Rack (ea) 10 15 10 14 13 Maximum Straw Capacity High Security Straw Capacity (0.5 mL) (ea) 111312 131220 203040 253800 304920 High Security Straw Capacity (0.25 mL) (ea) 254592 301120 468544 585680 699360 Number of Canisters (76 mm) (ea) 52 52 112 112 120 Number of Canister (63 mm) (ea) 8 8 0 0 16 Number of Canisters (38 mm) (ea) 28 12 24 24 40 Number of Levels per Canister (ea) 4 5 4 5 5 Level Height (mm) 135 135 135 135 135 Maximum Blood Bag Capacity Blood Bag Type Total Bags Bags /Frame
No. Frames Total Bags
Bags /Frame
No. Frames Total Bags
Bags Frame
No. Frame
Total Bags
Bags /Frame
No. Frames
Total Bags
Bags /Frame
No. Frames 25 mL (791 OS/U) 1296 6 216 1728 8 216 2376 6 396 3168 8 396 3360 7 480 50 mL (4R9951) 792 6 132 1056 8 132 1416 6 236 1888 8 236 2072 7 296 200 mL (DF-200) 168 3 56 280 5 56 336 3 112 560 5 112 544 4 136 250 mL (4R9953) 300 3 100 500 5 100 552 3 184 920 5 184 944 4 236 500 mL (4R9955) 192 3 64 320 5 64 408 3 136 680 5 136 640 4 160 700 mL (DF-700) 96 3 32 128 4 32 204 3 68 272 4 68 320 4 80 Model LNC-Y1000 LNC-Y1300T LNC-Y1600T LNC-Y1800 LNC-Y1800T LN2 Capacity Under Platform Vapor Storage (L) 135 265 300 320 320 LN2 Capacity (L) 1014 1340 1660 1880 1880 Neck Opening (mm) 465 635 635 635 635 Usable Internal Height (mm) 900 620 791 900 900 Outer Diameter (mm) 1190 1565 1565 1565 1565 Over Height(mm) Containing Instrument Height 1827 1398 1598 1883 1883 Weight Empty (kg) 495 851 914 985 985 Operation Height (mm) 950 997 967 1097 1097 Weight Liquid Full (kg) 1314 1934 2255 2504 2504 Door Width Requirement (≥mm) 1210 1585 1585 1585 1585 Maximum Storage Capacity of 2ml Internal Rotary Freeze Storage Tube 1.2,1.8&2 ml Vials (Internally Threaded) (ea) 51000 58500 76050 87750 94875 Number of Racks with 25 (5×5) Cell Boxes (ea) 16 18 18 18 13 Number of Racks with 100 (10×10) Cell Boxes (ea) 30 54 54 54 60 Number of 25 (5×5) Cell Boxes (ea) 240 180 234 270 195 Number of 100 (10×10) Cell Boxes (ea) 450 540 702 810 900 Number of Stages per Rack (ea) 15 10 13 15 15 Maximum Straw Capacity High Security Straw Capacity (0.5 mL) (ea) 365904 447444 559305 720252 671166 High Security Straw Capacity (0.25 mL) (ea) 839232 1029256 1286570 1651500 1543884 Number of Canisters (76 mm) (ea) 120 232 232 234 232 Number of Canister (63 mm) (ea) 16 24 24 42 24 Number of Canisters (38 mm) (ea) 40 39 39 54 39 Number of Levels per Canister (ea) 6 4 5 6 6 Level Height (mm) 135 135 135 135 135 Maximum Blood Bag Capacity Blood Bag Type Total Bags Bags /Frame
No. Frames
Total Bags
Bags /Frame
No. Frames
Total Bags
Bags /Frame
No. Frame
Total Bags
Bags /Frame
No. Frames
Total Bags
Bags /Frame
No. Frames
25 mL (791 OS/U) 4320 9 480 5172 6 862 6034 7 862 7074 9 786 7758 9 862 50 mL (4R9951) 2664 9 296 3270 6 545 3815 7 545 4374 9 486 4905 9 545 200 mL (DF-200) 680 5 136 774 3 258 1032 4 258 1110 5 222 1290 5 258 250 mL (4R9953) 1180 5 236 1257 3 419 1676 4 419 1950 5 390 2095 5 419 500 mL (4R9955) 800 5 160 912 3 304 1216 4 304 1380 5 276 1520 5 304 700 mL (DF-700) 400 5 80 465 3 155 620 4 155 660 5 132 775 5 155 -
