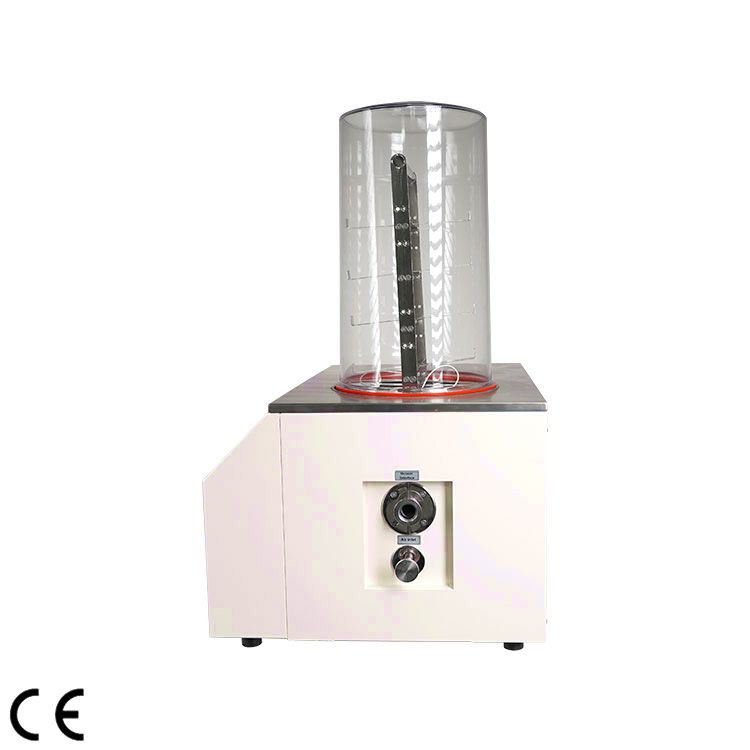

Benchtop Freeze Dryer, LYO60B-1S

  • Benchtop Freeze Dryer, LYO60B-1S
  • Benchtop Freeze Dryer, LYO60B-1S
  • Benchtop Freeze Dryer, LYO60B-1S
  • Benchtop Freeze Dryer, LYO60B-1S
商品圖像

  • 商品資訊

    Description



    DESCRIPTION

    LYO60B-1S Freeze Dryer use extremely cold temperatures (-60°C) and vacuum to remove moisture from food. Usually used to freeze-dry vaccines, bacteria, medicines, food, etc.

    Features

    1.7 inches colorful touch panel can display the product sample’s temperature, Condenser temperature and vacuum etc in digital and curve.
    2.Touch panel with the design conforms to ergonomics and operate more comfortably.
    3.Compact bench-top design with a small footprint.
    4.With USB interface to export the data, convenient forinformation management.
    5.Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing

    Reliability：
    1、High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
    2、Condenser and operation panel are made by stainless steel.
    3、Drying chamber is transparent which is visual and safe.

    Applications：

    1. The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.

    2. Widely used in drugs, biological products, chemical and food industries.

    3.On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

    Optional:
    1、Optional for gas interface: it can inject inert gas.
    2、Optional for Condenser electrical heating defrost function.



    SPECIFICATIONS


    Model LYO60B-1S LYO60B-1P LYO60B-1T LYO60B-1PT
    Type Standard



    chamber

    		 Standard



    chamber with

    8 port manifolds

    		 Stoppering



    chamber

    		 Stoppering



    chamber with

    8 port manifolds
    Freeze Drying Area(m2) 0.12 0.09
    Tray(Qty) 4/6(Optional)pcs 3pcs
    Tray Dimensions(Diameter*H)(mm) Φ200*20 Φ200*20
    Height Between Trays(mm) 76/50 70(average)
    Condenser Temperature (℃) -60 -60 -60 -60
    Condenser Capacity (L) 6.5 6.5 6.5 6.5
    Condenser Dimensions(Diameter*H)(mm) Φ215*190 Φ215*190 Φ215*190 Φ215*190
    Vacuum Degree(no-loading) (Pa) ≤5 ≤5 ≤5 ≤5
    Ice Condensing Capacity (kg/24h) 3 3 3 3
    Loading Capacity/ Shelf (mL) 300 300 300 300
    Total Loading Capacity(mL) 1200 1200 900 900
    Drying Chamber Dimensions(standard) Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm
    Total Qty. Of Vial Φ22 260 195
    Total Qty. Of Vial Φ16 480 360
    Total Qty. Of Vial Φ12 920 690
    Refrigerant CFC-free
    Standard Accessories Vacuum pump 2L/s,8m³/h,material tray,material rack,PC cover(for all modes)



    Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT)
    Optional Function&Accessories Electric defrost function,nitrogen gas filling valve,oil mist filter(for all models)



    800mL wide-mouth flask(only for model 1P/PT)
    Consumption 0.85kW
    Electricity AC220V,50Hz(standard), other electricity type can be customized
    External Dimensions(W*D*H)(mm) 600*540*374/820 600*540*374/880
    Shipping Dimensions(W*D*H) Main body 670*700*560mm
    Drying chamber 410*410*640mm
    Vacuum pump 220*580*370mm
    Gross Weight 110kg

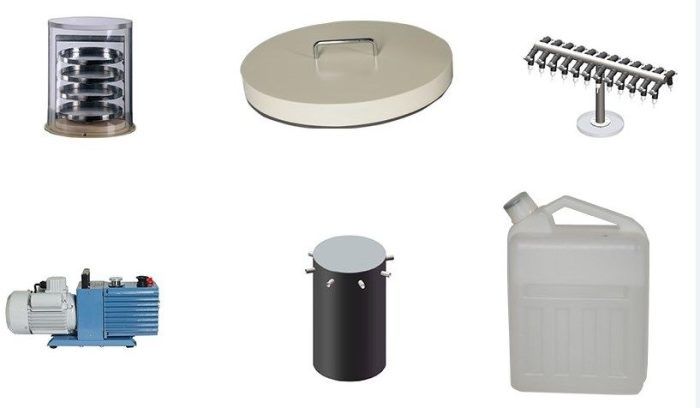

    Accessories & Package
