Illumination Chamber, ICB-L-E Series

  • Illumination Chamber, ICB-L-E Series
  • Illumination Chamber, ICB-L-E Series
  • Illumination Chamber, ICB-L-E Series
商品圖像

  • 商品資訊

    Description

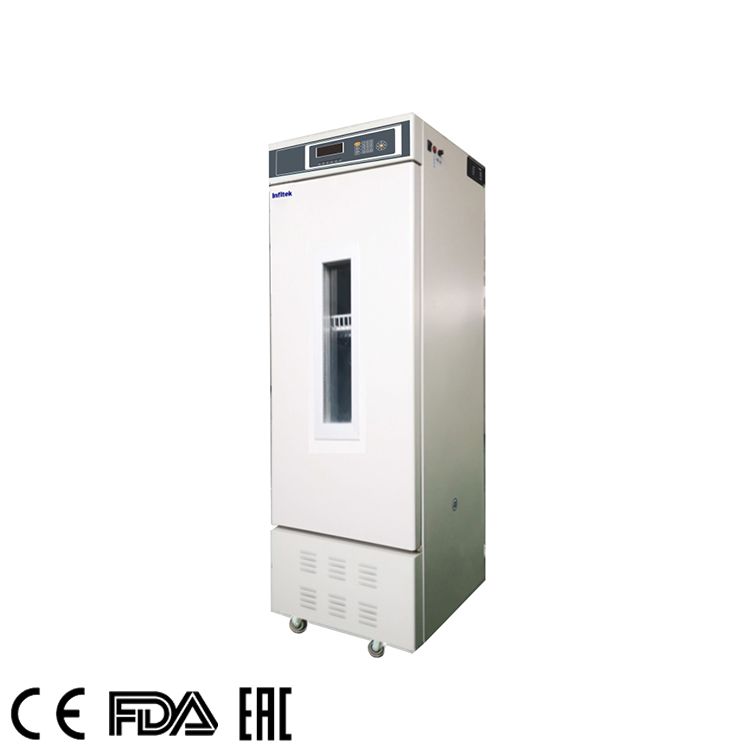

    Illumination Chamber is a biological incubation experiment instrument, which adopts a microcomputer automatic control system with programmable control mode and intermittent cooling.

    • Micro-computer control, integrated control panel. The parameters can be set are: time, temperature, light, humidity, period etc.
    • Over-temperature and sensor abnormality protection to ensure the equipment and sample safety.
    • Adopt LED light( ICB-L150E adopts Fluorescent lamp), beneficial to plant growth, disease resistance.
    • It has the functions of power-down memory and automatic compensation for power-down time.
    • Aluminum alloy frame, silver color and be able to the aging and deformation. With lock-door to protect the sample from falling out.
    • The device has wheels, which is easy to move.
    • Inside the incubator is grid structure,which can be adjusted according to the length of the sample.
    • Duct-ventilated type with soft wind and uniformity temperature.
    • The material of tank: stainless steel.
    • Anti-irradiation tempered-glass with coating to ensure a good insulation performance.
    • Light can be customized by users required. Our standard light is 8000lux. The max. light we can provide is 12000lux.

    Specifications

    Model ICB-L150E ICB-L260E ICB-L300E ICB-L500E ICB-L1000E
    Volume 150L 268L 310L 500L 1000L
    Temp. range 0-50°C
    Temp.fluctuation ±0.5°C
    Temp.uniformity ±0.1°C
    Illuminance 0~8000lux 0~12000lux
    (It can be customized)
    Can increase the illuminance according to customer requirements
    Heating power 300W 700W
    Compressor power 190W-320W
    Compressor delay protection time About 3min
    Sound emission <70dB
    Working mode Continuous operation (compressor intermittent working)
    Working environment Temperature: 0-38°C, humidity<80%RH, non-corrosive gas
    Electricity 220±22V, 50±0.5Hz
    External dimensions 525*540*1580mm 580*630*1755 mm 580*630*1895mm 705*825*1971mm 1230*708*1865mm
    (L*W*H)
    Internal dimensions(L*W*H) 424*430*962mm 480*480*1040mm 480*480*1290mm 575*650*1480mm 1230*600*1270mm
    Net weight/Gross weight (Kg) 90/100 105/120 135/150 180/210 290/310
