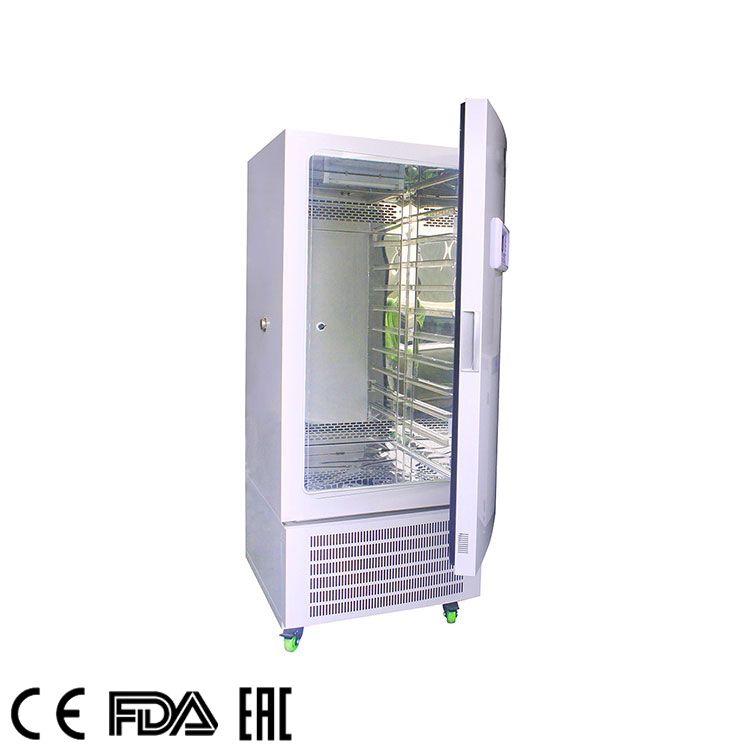

Cooling Biochemical Incubator, ICB-BP Series

  • Cooling Biochemical Incubator, ICB-BP Series
  • Cooling Biochemical Incubator, ICB-BP Series
商品圖像
  • 商品資訊

    Description

    Applications
    Biochemical incubators are suitable for scientific research and production departments such as environmental protection, medical treatment, sanitation, epidemic prevention, drug inspection, agriculture, livestock and aquaculture.

    Features
    Energy-saving
    The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
    Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
    High efficiency and energy-saving compressor, stable temperature control and low power consumption.
    Intelligent control
    Real-time parameter high efinition LCD display, intelligent microcomputer control.
    Menu-type operation interface, Multi-segment program control, simple and convenient operation, can quickly set temperature and time parameters.
    With USB port to download data.
    Standard built-in printer to record temperature and time data in real time
    Internal circulation system
    Back suction forced convection system.
    Adopts high-quality fan and large impeller fan, has higher ventilation efficiency and better temperature uniformity.
    Imported Danfoss compressor with cooling system, effectively extend the life of the compressor.

    Dedicated sheet metal processing
    The shelf can be disassembled and can be freely adjusted up and down.
    The inner chamber is made of 304 high-quality mirror stainless steel, with strong corrosion resistance.
    Humanized design
    Equipped with lamp inside, easy observation.
    Equipped with power supply outlet inside chamber, easily provide electricity for small instruments.
    The surface coated, good appearance and maintenance.
    Double door design, the inner door is made of tempered glass for easy observation,magnetic sealing design for outer door, good sealing.
    Safety
    Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
    Equipped with spare temperature control which ensures the product work normally even the main temperature control failed(for heating)
    Over-temperature control sound alarm system

    Options:
    Φ25mm(50mm)test hole
    Spare shelf

    Specifications

    Model ICB-B175P ICB-B275P ICB-B375P ICB-B475P ICB-B800P ICB-B1075P
    Capacity(L) 175 275 375 475 800 1075
    Circulation Mode Forced convection
    Dimension(W*D*H) Internal (cm) 45*42*93 58*51*93.5 59*55*116 70*55*125 96.5*61*137 95*70*160
    External (cm) 61*62*150 74*71*157 75*75*173 86*75*182 113*93*198 101*90*224
    Temperature Range (℃) -10~75
    Fluctuation (℃) ±0.5
    Resolution (℃) 0.1
    Uniformity (℃) ±1
    Sensor PT100
    Controller Microcomputer control
    Display High efinition LCD
    Timer(min) 1~9999
    Material Internal Mirror 304 stainless steel
    External Coated cold rolled steel
    Shelves(Standard / Max ) 3 / 8 3 / 8 3 / 10 3 / 12 3 / 13 3 / 14
    Test Hole Φ25mm   , 2 pics
    Internal Socket (Qty) 1
    Refrigerant R134a (CFC free)
    Safety Device Over temperaure Visible& Audible alarm,digital independent temp. limiter,leakage protector
    Electricity Voltage/Frequency AC 220/110V, 50/60Hz
    Consumption (W) 800W 1000W 1250W 1300W 2300W 2500W
    N.W./G.W. (kg) 75/115 85/128 93/137 105/147 175/240 205/290
    Package Dimension(W*D*H) (cm) 92*82*195 95*85*210 101*100*210 101*100*225 104*124*231 120*110*255
    Optional  Φ25mm (50mm) test hole, spare shelf
