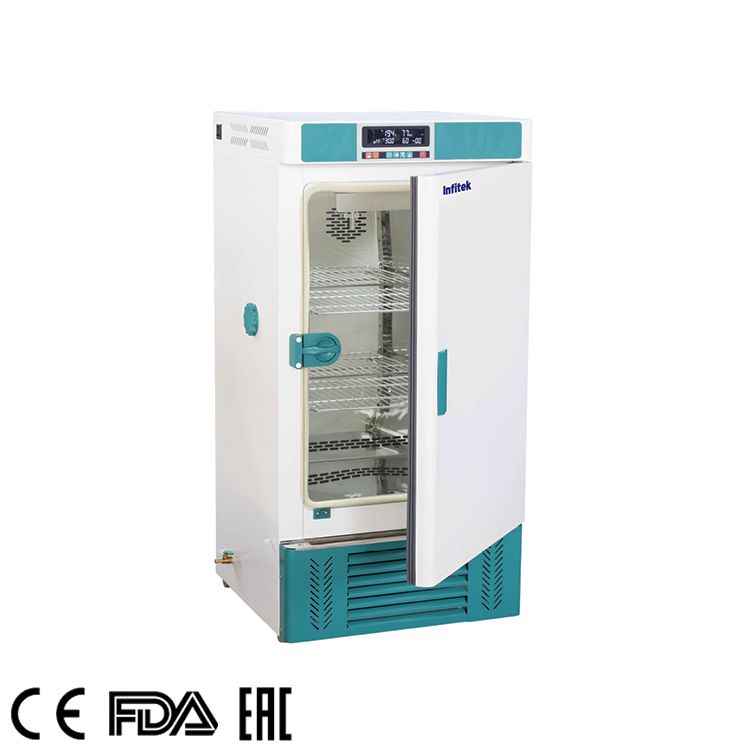

Constant Temperature Humidity Chamber (Stability Chamber), ICB-H Series
-
商品資訊
Description
-
Unique internal wind circulation, breeze circulate fan circulation makesinner chamber temperature uniform.
-
Large LCD display,multiple data display at the same time, 30-stage program control, round move, ladder operating,with function of loop self-diagnose and sensor fault alarm.
-
3.New Humidity sensor, which uses the SHT11 chip manufactured by SENSIRION Switzerland.
-
Intelligent PID temperature control system, high precise temperature control PT100 sensor equipped, high precise and stability import humidity sensor component to control humidity automatically.
-
Double door structure, with high quality stalinite to observe samples, outer door with magnetic strip, convenient to on and off,good sealing.
-
Intelligent defrosting function ensures device long-time run without defrost. Standard mechanical independent temperature limiter provides double protection.
-
Inner humidifying system with small particles, good humidity uniformity, low water consumption and function of alarm when is short of water.
Specifications
|
Model |
ICB-H70 |
ICB-H150 |
ICB-H250 |
|
Cycle Mode |
Forced convection |
|
Function |
Temp. Range |
No humidification: 0～65℃
humidification: 10 ～60℃ |
|
Temp. Resolution Ratio |
0.1℃ |
|
Temp. Motion |
High Temp.：±0.5℃
Low Temp.：±1℃ |
|
Temp. Uniformity |
±1℃ |
|
Humidity Range |
45%～95%RH |
|
Humidity Stability |
±5%RH |
|
Structure |
Inner Chamber |
Mirror Stainless Steel |
|
Outside Material |
Cold rolling steel electrostatic spraying exterior |
|
Insulation Layer |
Polyurethane |
|
Heater |
Stainless steel heater |
|
Power Rating |
1.8kW |
2.0kW |
2.2kW |
|
Compressor |
Air cooled hermetic compressor |
|
Cryogen |
R134A |
|
Defrost Structure |
Automatic control intelligent defrosting |
|
Humidifying Method |
External |
|
Test Hole |
Plastic test hole φ43mm |
|
Controlled External |
Universal socket (one) |
|
Power Supply |
|
Controller |
Temp. Control Mode |
30 section LCD program |
|
Temp. Setting Mode |
Touch button setting |
|
Temp. Display Mode |
Measuring temperature: LCD upper row； Setting temperature: the lower row |
|
Humidity Control Mode |
Automatic |
|
Timer |
0～99.9h×30 section（with timing wait function） |
|
Operation Function |
Program operation, timing function,auto stop. |
|
Sensor |
PT100 |
|
Additional Function |
LED light、Deviation correction、Menu key lock、Self diagnosis of power failure parameter memory loop |
|
Safety Device |
Over temperature alarm, mechanical temperature limiter |
|
Specification |
Inner Chamber Size(W×L×H)(mm) |
415×350×500 |
490×400×750 |
500×500×950 |
|
Exterior Size (W×L×H)(mm) |
571×591×1051 |
490×400×750 |
656×741×1501 |
|
Packing Size (W×L×H)(mm) |
686×690×1211 |
646×641×1301 |
771×840×1661 |
|
Volume |
70L |
150L |
250L |
|
Load Per Rack |
15kg |
|
Shelf Number |
9 |
12 |
18 |
|
Shelf Space |
35mm |
|
Power Supply（50/60Hz）Current Rating |
AC220V/8.2A |
AC220V/9.1A |
AC220V/10A |
|
NW/GW (kg） |
69/92 |
86/114 |
100/139 |
|
Accessory |
Shelf |
2 |
|
Optional Accessories |
Shelf, touch screen controller, RS485 interface, printer, recorder, remote control, wireless SMS alarm, USB data storage |
-
