Description
DESCRIPTION
Drying Oven
1. Horizontal forced air type, high space utilization and good temperature uniformity
2. Anti-hot handle
SPECIFICATIONS
Model DON-H45E /DON-H45 DON-H70E /DON-H70 DON-H140E /DON-H140 DON-H230E /DON-H230 Cycle Mode Natural convection Volume 43L 71L 136L 225L Temp. Range RT+10~250℃ Temp. Resolution 0.1℃ Temp. Uniformity ±2.5% Inner Chamber Material DON-H45/70/140/230: High quality stainless steel; DON-H45/70/140/230E: High strength galvanized sheet;
Structure External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE);
Heater: Nickel chromium alloy heating wire;
Exhaust hole: φ28mm top (with function of test hole);
Controller Temp. sensor: PT100; Temp. set: soft touch button;
Temp. control: Intelligent PID for Two temperature section;
Temp. display: LED display;
Operation function: fixed temperature operation, timing function, auto stop;
Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory;
Timing Setting 0~9999mins(with timing wait function) Alarm Over-temperature Alarm, audible and visual alarm Shelves 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm Consumption 1.2kW 1.6kW 2.3kW 3.0kW Power Supply AC110/220V±10%, 50/60Hz Internal Size(W*D*H) 350*350*350mm 450*350*450mm 550*450*550mm 600*500*750mm External Size(W*D*H) 652*472*587mm 752*472*687mm 852*572*786mm 902*622*986mm Package Size(W*D*H) 755*615*735mm 855*615*835mm 955*715*935mm 1005*765*1135mm Net/Gross Weight 33/37kg 45/50kg 62/68kg 77/96 kg Accessories & Package

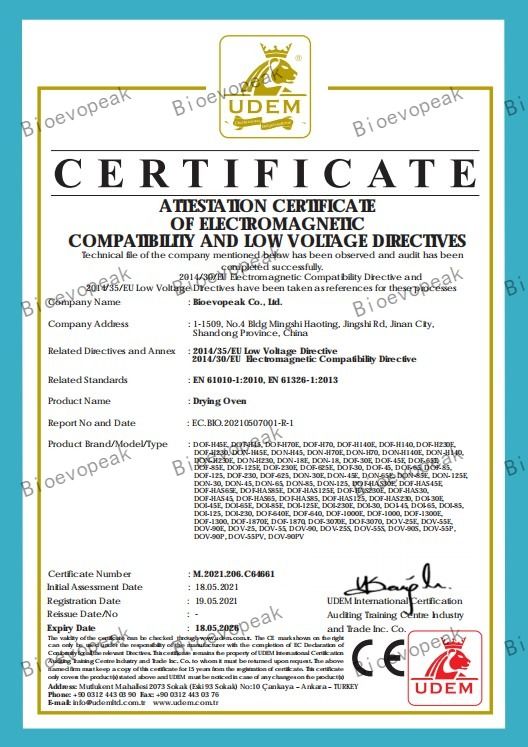

CERTIFICATE
-
